Correlations1 / 54

Recap

Population Variability

Sums of squares $S S = Σ (X_{i} - μ_{x})^{2}$ Variance $σ^{2} = \frac{Σ (X_{i} - μ_{x})^{2}}{N} = \frac{S S}{N}$ Standard devation $σ = \sqrt{\frac{Σ (X_{i} - μ_{x})^{2}}{N}} = \sqrt{\frac{S S}{N}} = \sqrt{σ^{2}}$

Sample variability

Sums of squares $S S = Σ (X_{i} - \bar{X})^{2}$ Variance $s^{2} = \frac{Σ (X_{i} - \bar{X})^{2}}{N - 1} = \frac{S S}{N - 1}$ Standard devation $s = \sqrt{\frac{Σ (X_{i} - \bar{X})^{2}}{N - 1}} = \sqrt{\frac{S S}{N - 1}} = \sqrt{s^{2}}$

2 / 54

Bi-variate descriptives

Covariation

"Sum of the cross-products"

Population

$S P_{X Y} = Σ (X_{i} - μ_{X}) (Y_{i} - μ_{Y})$

Sample

$S P_{X Y} = Σ (X_{i} - \bar{X}) (Y_{i} - \bar{Y})$

3 / 54

What does a large, positive SP indicate? A positive relationship, same sign

What does a large, negatve SP indicate? A negative relationship, different sign

What does SP close to 0 indicate? No relationship

Covariance

Sort of like the variance of two variables

Population

$σ_{X Y} = \frac{Σ (X_{i} - μ_{X}) (Y_{i} - μ_{Y})}{N}$

Sample

$s_{X Y} = c o v_{X Y} = \frac{Σ (X_{i} - \bar{X}) (Y_{i} - \bar{Y})}{N - 1}$

4 / 54

Covariance table

$K_{X X} = [\begin{array}{rrr} σ_{X}^{2} & c o v_{X Y} & c o v_{X Z} \\ c o v_{Y X} & σ_{Y}^{2} & c o v_{Y Z} \\ c o v_{Z X} & c o v_{Z Y} & σ_{Z}^{2} \end{array}]$

5 / 54

Point out that $c o v_{x y}$ is the same as $c o v_{y x}$

Correlation

Measure of association
How much two variables are linearly related
-1 to 1
Sign indicates direction of relationship
Invariant to changes in mean or scaling

6 / 54

Correlation

Pearson product moment correlation

Population

$ρ_{X Y} = \frac{Σ z_{X} z_{Y}}{N} = \frac{S P}{\sqrt{S S_{X}} \sqrt{S S_{Y}}} = \frac{σ_{X Y}}{σ_{X} σ_{Y}}$

Sample

$r_{X Y} = \frac{Σ z_{X} z_{Y}}{n - 1} = \frac{S P}{\sqrt{S S_{X}} \sqrt{S S_{Y}}} = \frac{s_{X Y}}{s_{X} s_{Y}}$

7 / 54

Why is it called the Pearson Product Moment correlation? Pearson = Karl Pearson Product = multiply Moment = variance is the second moment of a distribution

Conceptually

Ways to think about a correlation:

How two vectors of numbers co-relate (i.e., parent & child heights)
Product of z-scores (mathematically, it is)
The average squared distance between 2 vectors in the same space

8 / 54

Effect size

Recall that z-scores allow us to compare across units of measure; the products of standardized scores are themselves standardized.
The correlation coefficient is a standardized effect size which can be used communicate the strength of a relationship.
Correlations can be compared across studies, measures, constructs, time.
Example: the correlation between age and height among children is $r = .70$ .
Building blocks of regression!

9 / 54

What is a large correlation?

Cohen (1988): .1 (small), .3 (medium), .5 (large)
- Often forgot: Cohen said only to use them when you had nothing else to go on, and has since regretted even suggesting benchmarks to begin with.
Meyer & Hemphill said .3 is average

10 / 54

What affects correlations?

It's not enough to calculate a correlation between two variables. You should always look at a figure of the data to make sure the number accurately describes the relationship. Correlations can be easily fooled by qualities of your data, like:

Skewed distributions
Outliers
Restriction of range
Nonlinearity
Multiple Groups
Reliability

11 / 54

Skewed distributions

p = data %>% ggplot(aes(x=x, y=y)) + geom_point()
ggMarginal(p, type = "density")

12 / 54

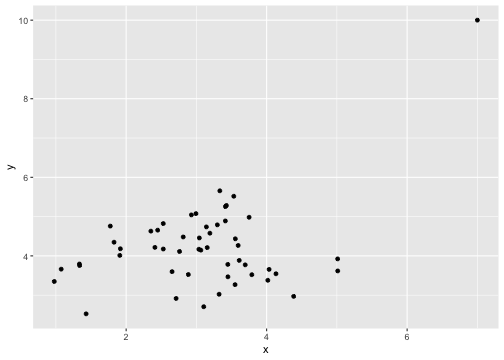

Outliers

data %>% ggplot(aes(x=x, y=y)) + geom_point()

13 / 54

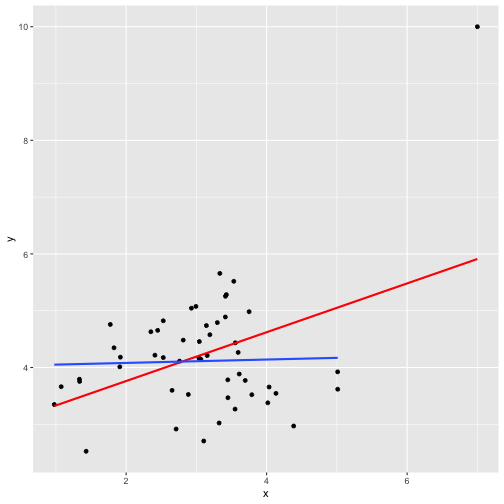

Outliers

data %>% ggplot(aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "red") +
  geom_smooth(data = data[-51,],
              method = "lm",
              se = FALSE)

14 / 54

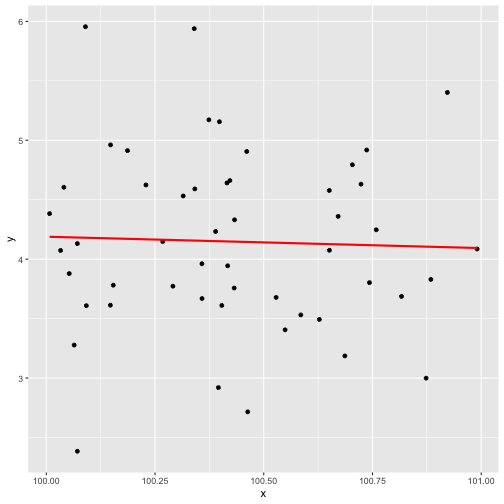

Restriction of range

data %>%
ggplot(aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "red")

15 / 54

What if I told you there were scores on X could range from 97 to 103?

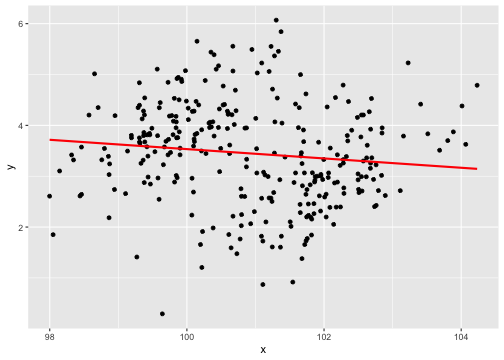

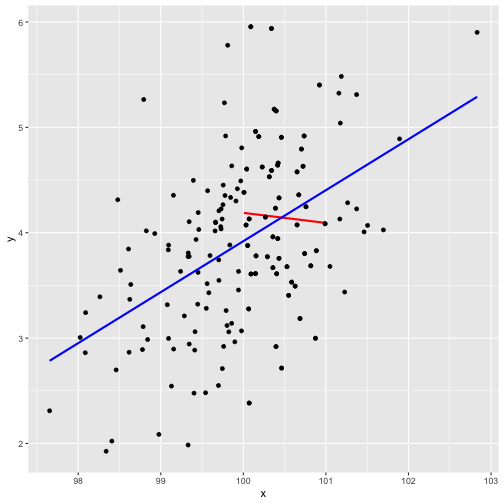

Restriction of range

data %>%
ggplot(aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "red") +
  geom_point(data = real_data) +
  geom_smooth(method = "lm",
              se = FALSE,
              data = real_data,
              color = "blue")

16 / 54

Can you think of example where this might occur in psychology? My idea: that many psychology studies only look at undergraduates (restricted age, restricted education) -- can't use these as predictors or covariates

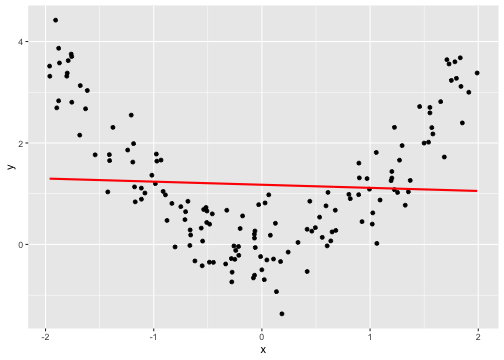

Nonlinearity

data %>%
  ggplot(aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method = "lm",
              se = FALSE,
              color = "red")

17 / 54

It's not always apparent

Sometimes issues that affect correlations won't appear in your graph, but you still need to know how to look for them.

Multiple groups
Low reliability (take a psychometrics or research methods course)

18 / 54

Multiple groups

data %>%
  ggplot(aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE, color = "red")

19 / 54

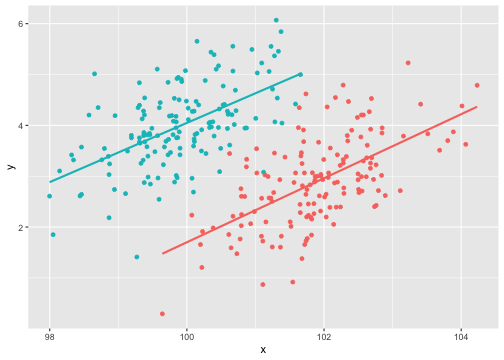

Multiple groups

data %>%
  ggplot(aes(x=x, y=y,
             color = gender)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE) +
  guides(color = F)

20 / 54

Reliability

Which would you rather have?

1-item final exam vs. a 30-item final exam?
fMRI during a minor earthquake vs. no earthquake?
Cognitive testing with Blue Angels flying vs. not with the Blue Angels?

21 / 54

Reliability

Which would you rather have?

1-item final exam vs. a 30-item final exam?
fMRI during a minor earthquake vs. no earthquake?
Cognitive testing with Blue Angels flying vs. not with the Blue Angels?

All measurement includes error

Observed Score = True Score + Measurement Error

22 / 54

Reliability

Error is random; it cannot correlate with anything
Because we don't measure our variables perfectly, we get lower correlations compared to the "true" correlations
Kind of analgous to power -- it's a ceiling
If we want valid measures, they need to be reliable

23 / 54

Reliability

Error is random; it cannot correlate with anything
Because we don't measure our variables perfectly, we get lower correlations compared to the "true" correlations
Kind of analgous to power -- it's a ceiling
If we want valid measures, they need to be reliable

So what do we do?

If you're going to measure something, do it well
Applies to ALL IVs and DVs, and all designs
Remember this when interpreting other research

23 / 54

What is the size of the correlation?Chemotherapy and breast cancer survival?
Batting ability and hit success on a single at bat?
Antihistamine use and reduced sneezing/runny nose?
Combat exposure and PTSD?
Ibuprofen on pain reduction?
Gender and weight?
Therapy and well being?
Observer ratings of attractiveness?
Gender and arm strength?
Nearness to equator and daily temperature for U.S.?
24 / 54

What is the size of the correlation?Chemotherapy and breast cancer survival? (.03)
Batting ability and hit success on a single at bat? (.06)
Antihistamine use and reduced sneezing/runny nose? (.11)
Combat exposure and PTSD? (.11)
Ibuprofen on pain reduction? (.14)
Gender and weight? (.26)
Therapy and well being? (.32)
Observer ratings of attractiveness? (.39)
Gender and arm strength? (.55)
Nearness to equator and daily temperature for U.S.? (.60)
25 / 54

Questions to ask yourself:What is your N?
What is the typical effect size in the field?
Study design?
What is your DV?
Importance?
26 / 54

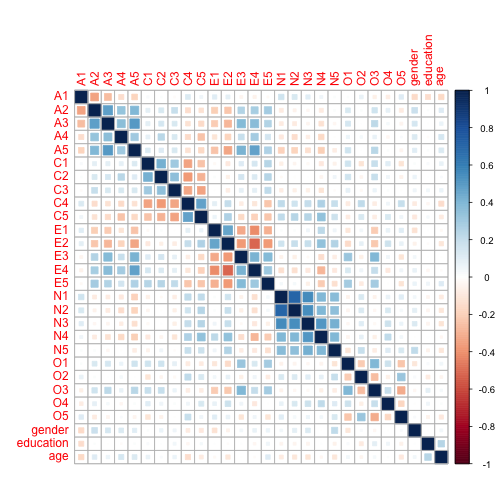

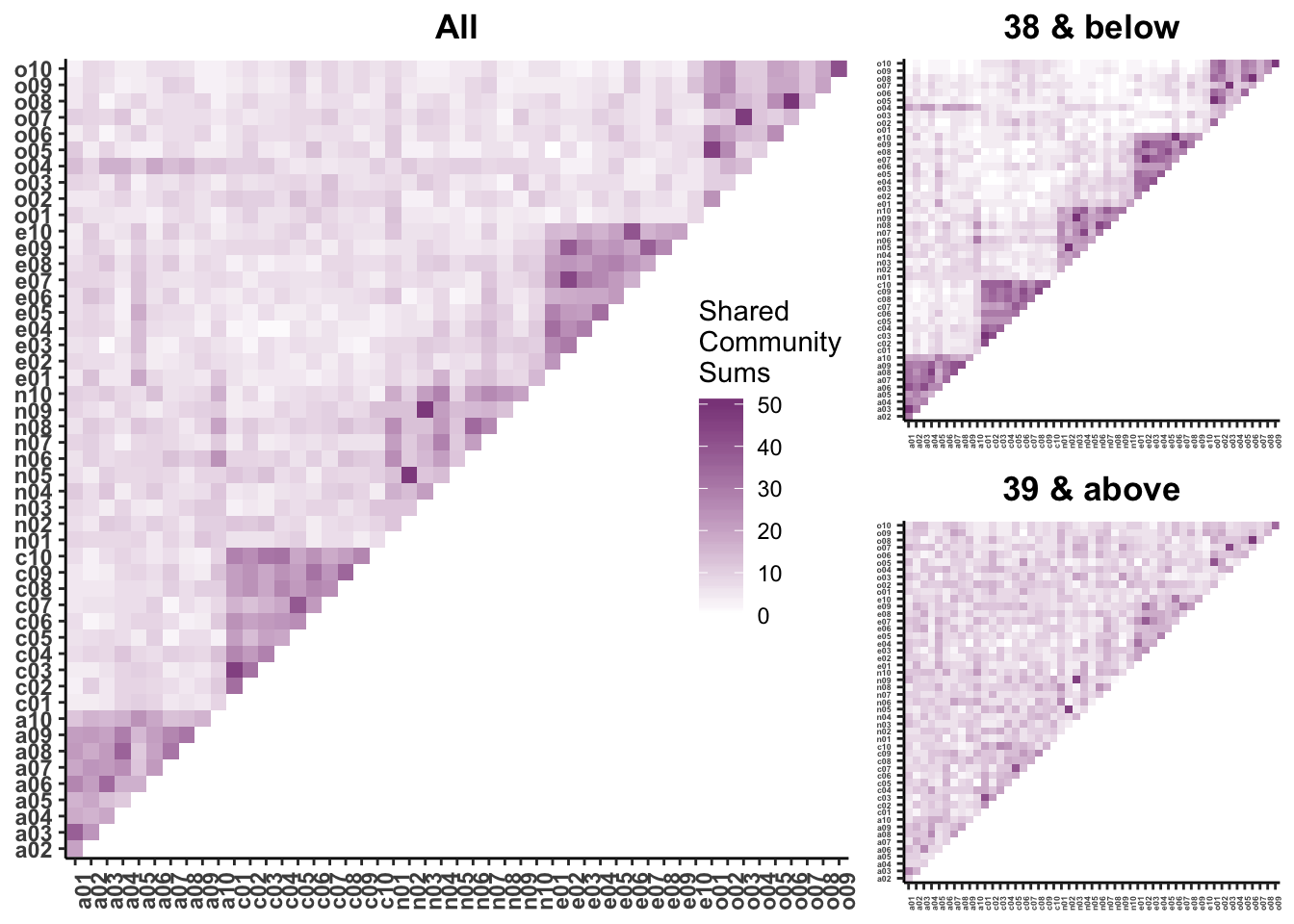

Correlation matrices

Correlations are both a descriptive and an inferential statistic. As a descriptive statistic, they're useful for understanding what's going on in a larger dataset.

Like we use the summary() or describe() (psych) functions to examine our dataset before we run any infernetial tests, we should also look at the correlation matrix.

27 / 54

library(psych)
data(bfi)
head(bfi)

##       A1 A2 A3 A4 A5 C1 C2 C3 C4 C5 E1 E2 E3 E4 E5 N1 N2 N3 N4 N5 O1 O2 O3 O4
## 61617  2  4  3  4  4  2  3  3  4  4  3  3  3  4  4  3  4  2  2  3  3  6  3  4
## 61618  2  4  5  2  5  5  4  4  3  4  1  1  6  4  3  3  3  3  5  5  4  2  4  3
## 61620  5  4  5  4  4  4  5  4  2  5  2  4  4  4  5  4  5  4  2  3  4  2  5  5
## 61621  4  4  6  5  5  4  4  3  5  5  5  3  4  4  4  2  5  2  4  1  3  3  4  3
## 61622  2  3  3  4  5  4  4  5  3  2  2  2  5  4  5  2  3  4  4  3  3  3  4  3
## 61623  6  6  5  6  5  6  6  6  1  3  2  1  6  5  6  3  5  2  2  3  4  3  5  6
##       O5 gender education age
## 61617  3      1        NA  16
## 61618  3      2        NA  18
## 61620  2      2        NA  17
## 61621  5      2        NA  17
## 61622  3      1        NA  17
## 61623  1      2         3  21

28 / 54

cor(bfi)

##           A1 A2 A3 A4 A5 C1 C2 C3 C4 C5 E1 E2 E3 E4 E5 N1 N2 N3 N4 N5 O1
## A1         1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## A2        NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## A3        NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## A4        NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## A5        NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## C1        NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## C2        NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## C3        NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA NA
## C4        NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA NA
## C5        NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA NA
## E1        NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA NA
## E2        NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA NA
## E3        NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA NA
## E4        NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA NA
## E5        NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA NA
## N1        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA NA
## N2        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA NA
## N3        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA NA
## N4        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA NA
## N5        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1 NA
## O1        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA  1
## O2        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## O3        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## O4        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## O5        NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## gender    NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## education NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
## age       NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
##                    O2 O3 O4 O5     gender education         age
## A1                 NA NA NA NA         NA        NA          NA
## A2                 NA NA NA NA         NA        NA          NA
## A3                 NA NA NA NA         NA        NA          NA
## A4                 NA NA NA NA         NA        NA          NA
## A5                 NA NA NA NA         NA        NA          NA
## C1                 NA NA NA NA         NA        NA          NA
## C2                 NA NA NA NA         NA        NA          NA
## C3                 NA NA NA NA         NA        NA          NA
## C4                 NA NA NA NA         NA        NA          NA
## C5                 NA NA NA NA         NA        NA          NA
## E1                 NA NA NA NA         NA        NA          NA
## E2                 NA NA NA NA         NA        NA          NA
## E3                 NA NA NA NA         NA        NA          NA
## E4                 NA NA NA NA         NA        NA          NA
## E5                 NA NA NA NA         NA        NA          NA
## N1                 NA NA NA NA         NA        NA          NA
## N2                 NA NA NA NA         NA        NA          NA
## N3                 NA NA NA NA         NA        NA          NA
## N4                 NA NA NA NA         NA        NA          NA
## N5                 NA NA NA NA         NA        NA          NA
## O1                 NA NA NA NA         NA        NA          NA
## O2         1.00000000 NA NA NA 0.02694778        NA -0.04254386
## O3                 NA  1 NA NA         NA        NA          NA
## O4                 NA NA  1 NA         NA        NA          NA
## O5                 NA NA NA  1         NA        NA          NA
## gender     0.02694778 NA NA NA 1.00000000        NA  0.04770347
## education          NA NA NA NA         NA         1          NA
## age       -0.04254386 NA NA NA 0.04770347        NA  1.00000000

29 / 54

round(cor(bfi, use = "pairwise"),2)

##              A1    A2    A3    A4    A5    C1    C2    C3    C4    C5    E1
## A1         1.00 -0.34 -0.27 -0.15 -0.18  0.03  0.02 -0.02  0.13  0.05  0.11
## A2        -0.34  1.00  0.49  0.34  0.39  0.09  0.14  0.19 -0.15 -0.12 -0.21
## A3        -0.27  0.49  1.00  0.36  0.50  0.10  0.14  0.13 -0.12 -0.16 -0.21
## A4        -0.15  0.34  0.36  1.00  0.31  0.09  0.23  0.13 -0.15 -0.24 -0.11
## A5        -0.18  0.39  0.50  0.31  1.00  0.12  0.11  0.13 -0.13 -0.17 -0.25
## C1         0.03  0.09  0.10  0.09  0.12  1.00  0.43  0.31 -0.34 -0.25 -0.02
## C2         0.02  0.14  0.14  0.23  0.11  0.43  1.00  0.36 -0.38 -0.30  0.02
## C3        -0.02  0.19  0.13  0.13  0.13  0.31  0.36  1.00 -0.34 -0.34  0.00
## C4         0.13 -0.15 -0.12 -0.15 -0.13 -0.34 -0.38 -0.34  1.00  0.48  0.09
## C5         0.05 -0.12 -0.16 -0.24 -0.17 -0.25 -0.30 -0.34  0.48  1.00  0.06
## E1         0.11 -0.21 -0.21 -0.11 -0.25 -0.02  0.02  0.00  0.09  0.06  1.00
## E2         0.09 -0.23 -0.29 -0.19 -0.33 -0.09 -0.06 -0.08  0.20  0.26  0.47
## E3        -0.05  0.25  0.39  0.19  0.42  0.12  0.15  0.09 -0.08 -0.16 -0.33
## E4        -0.06  0.28  0.38  0.30  0.47  0.14  0.12  0.09 -0.11 -0.20 -0.42
## E5        -0.02  0.29  0.25  0.16  0.27  0.25  0.25  0.21 -0.24 -0.23 -0.30
## N1         0.17 -0.09 -0.08 -0.10 -0.20 -0.07 -0.02 -0.07  0.22  0.21  0.02
## N2         0.14 -0.05 -0.09 -0.14 -0.19 -0.04 -0.01 -0.06  0.16  0.25  0.01
## N3         0.10 -0.04 -0.04 -0.07 -0.14 -0.03  0.00 -0.07  0.21  0.24  0.05
## N4         0.05 -0.09 -0.13 -0.17 -0.20 -0.10 -0.05 -0.11  0.26  0.34  0.23
## N5         0.02  0.02 -0.04 -0.01 -0.08 -0.05  0.05 -0.01  0.20  0.17  0.05
## O1         0.01  0.13  0.15  0.06  0.16  0.17  0.16  0.09 -0.09 -0.08 -0.10
## O2         0.08  0.02  0.00  0.04  0.00 -0.11 -0.04 -0.03  0.21  0.14  0.04
## O3        -0.06  0.16  0.22  0.07  0.24  0.19  0.19  0.06 -0.08 -0.08 -0.22
## O4        -0.08  0.09  0.04 -0.04  0.02  0.11  0.06  0.02  0.05  0.14  0.08
## O5         0.11 -0.09 -0.05  0.02 -0.05 -0.12 -0.05 -0.01  0.20  0.06  0.10
## gender    -0.16  0.18  0.14  0.13  0.10  0.01  0.07  0.05 -0.08 -0.09 -0.13
## education -0.14  0.01  0.00 -0.02  0.01  0.03  0.00  0.05 -0.04  0.03  0.00
## age       -0.16  0.11  0.07  0.14  0.13  0.08  0.02  0.07 -0.15 -0.09 -0.03
##              E2    E3    E4    E5    N1    N2    N3    N4    N5    O1    O2
## A1         0.09 -0.05 -0.06 -0.02  0.17  0.14  0.10  0.05  0.02  0.01  0.08
## A2        -0.23  0.25  0.28  0.29 -0.09 -0.05 -0.04 -0.09  0.02  0.13  0.02
## A3        -0.29  0.39  0.38  0.25 -0.08 -0.09 -0.04 -0.13 -0.04  0.15  0.00
## A4        -0.19  0.19  0.30  0.16 -0.10 -0.14 -0.07 -0.17 -0.01  0.06  0.04
## A5        -0.33  0.42  0.47  0.27 -0.20 -0.19 -0.14 -0.20 -0.08  0.16  0.00
## C1        -0.09  0.12  0.14  0.25 -0.07 -0.04 -0.03 -0.10 -0.05  0.17 -0.11
## C2        -0.06  0.15  0.12  0.25 -0.02 -0.01  0.00 -0.05  0.05  0.16 -0.04
## C3        -0.08  0.09  0.09  0.21 -0.07 -0.06 -0.07 -0.11 -0.01  0.09 -0.03
## C4         0.20 -0.08 -0.11 -0.24  0.22  0.16  0.21  0.26  0.20 -0.09  0.21
## C5         0.26 -0.16 -0.20 -0.23  0.21  0.25  0.24  0.34  0.17 -0.08  0.14
## E1         0.47 -0.33 -0.42 -0.30  0.02  0.01  0.05  0.23  0.05 -0.10  0.04
## E2         1.00 -0.38 -0.51 -0.37  0.17  0.19  0.20  0.35  0.25 -0.16  0.08
## E3        -0.38  1.00  0.42  0.38 -0.05 -0.07 -0.02 -0.15 -0.07  0.33 -0.07
## E4        -0.51  0.42  1.00  0.32 -0.14 -0.14 -0.10 -0.29 -0.09  0.14  0.06
## E5        -0.37  0.38  0.32  1.00  0.04  0.04 -0.06 -0.21 -0.13  0.30 -0.08
## N1         0.17 -0.05 -0.14  0.04  1.00  0.71  0.56  0.40  0.38 -0.05  0.13
## N2         0.19 -0.07 -0.14  0.04  0.71  1.00  0.55  0.39  0.35 -0.05  0.13
## N3         0.20 -0.02 -0.10 -0.06  0.56  0.55  1.00  0.52  0.43 -0.03  0.11
## N4         0.35 -0.15 -0.29 -0.21  0.40  0.39  0.52  1.00  0.40 -0.05  0.08
## N5         0.25 -0.07 -0.09 -0.13  0.38  0.35  0.43  0.40  1.00 -0.12  0.20
## O1        -0.16  0.33  0.14  0.30 -0.05 -0.05 -0.03 -0.05 -0.12  1.00 -0.21
## O2         0.08 -0.07  0.06 -0.08  0.13  0.13  0.11  0.08  0.20 -0.21  1.00
## O3        -0.23  0.39  0.21  0.29 -0.05 -0.03 -0.03 -0.06 -0.08  0.40 -0.26
## O4         0.17  0.05 -0.10  0.00  0.08  0.13  0.18  0.21  0.11  0.18 -0.07
## O5         0.08 -0.11  0.05 -0.11  0.11  0.04  0.06  0.04  0.14 -0.24  0.32
## gender    -0.05  0.05  0.08  0.07  0.04  0.10  0.12  0.00  0.21 -0.10  0.03
## education -0.01  0.00 -0.04  0.06 -0.05 -0.05 -0.05  0.01 -0.05  0.03 -0.09
## age       -0.11  0.00 -0.01  0.11 -0.09 -0.10 -0.11 -0.03 -0.10  0.05 -0.04
##              O3    O4    O5 gender education   age
## A1        -0.06 -0.08  0.11  -0.16     -0.14 -0.16
## A2         0.16  0.09 -0.09   0.18      0.01  0.11
## A3         0.22  0.04 -0.05   0.14      0.00  0.07
## A4         0.07 -0.04  0.02   0.13     -0.02  0.14
## A5         0.24  0.02 -0.05   0.10      0.01  0.13
## C1         0.19  0.11 -0.12   0.01      0.03  0.08
## C2         0.19  0.06 -0.05   0.07      0.00  0.02
## C3         0.06  0.02 -0.01   0.05      0.05  0.07
## C4        -0.08  0.05  0.20  -0.08     -0.04 -0.15
## C5        -0.08  0.14  0.06  -0.09      0.03 -0.09
## E1        -0.22  0.08  0.10  -0.13      0.00 -0.03
## E2        -0.23  0.17  0.08  -0.05     -0.01 -0.11
## E3         0.39  0.05 -0.11   0.05      0.00  0.00
## E4         0.21 -0.10  0.05   0.08     -0.04 -0.01
## E5         0.29  0.00 -0.11   0.07      0.06  0.11
## N1        -0.05  0.08  0.11   0.04     -0.05 -0.09
## N2        -0.03  0.13  0.04   0.10     -0.05 -0.10
## N3        -0.03  0.18  0.06   0.12     -0.05 -0.11
## N4        -0.06  0.21  0.04   0.00      0.01 -0.03
## N5        -0.08  0.11  0.14   0.21     -0.05 -0.10
## O1         0.40  0.18 -0.24  -0.10      0.03  0.05
## O2        -0.26 -0.07  0.32   0.03     -0.09 -0.04
## O3         1.00  0.19 -0.31  -0.04      0.09  0.04
## O4         0.19  1.00 -0.18   0.00      0.05  0.01
## O5        -0.31 -0.18  1.00   0.02     -0.06 -0.10
## gender    -0.04  0.00  0.02   1.00      0.01  0.05
## education  0.09  0.05 -0.06   0.01      1.00  0.24
## age        0.04  0.01 -0.10   0.05      0.24  1.00

30 / 54

round(cor(bfi, use = "complete"),2)

##              A1    A2    A3    A4    A5    C1    C2    C3    C4    C5    E1
## A1         1.00 -0.34 -0.26 -0.14 -0.19  0.02  0.01 -0.01  0.10  0.02  0.12
## A2        -0.34  1.00  0.48  0.34  0.38  0.09  0.13  0.19 -0.14 -0.11 -0.24
## A3        -0.26  0.48  1.00  0.38  0.50  0.10  0.14  0.13 -0.12 -0.15 -0.22
## A4        -0.14  0.34  0.38  1.00  0.32  0.08  0.22  0.13 -0.16 -0.24 -0.14
## A5        -0.19  0.38  0.50  0.32  1.00  0.12  0.11  0.13 -0.12 -0.16 -0.25
## C1         0.02  0.09  0.10  0.08  0.12  1.00  0.43  0.32 -0.35 -0.25 -0.03
## C2         0.01  0.13  0.14  0.22  0.11  0.43  1.00  0.36 -0.38 -0.30  0.02
## C3        -0.01  0.19  0.13  0.13  0.13  0.32  0.36  1.00 -0.35 -0.35 -0.02
## C4         0.10 -0.14 -0.12 -0.16 -0.12 -0.35 -0.38 -0.35  1.00  0.48  0.10
## C5         0.02 -0.11 -0.15 -0.24 -0.16 -0.25 -0.30 -0.35  0.48  1.00  0.07
## E1         0.12 -0.24 -0.22 -0.14 -0.25 -0.03  0.02 -0.02  0.10  0.07  1.00
## E2         0.08 -0.24 -0.29 -0.20 -0.33 -0.10 -0.07 -0.09  0.21  0.26  0.47
## E3        -0.04  0.25  0.38  0.20  0.41  0.13  0.15  0.10 -0.09 -0.17 -0.33
## E4        -0.07  0.30  0.39  0.33  0.48  0.14  0.12  0.10 -0.12 -0.21 -0.42
## E5        -0.02  0.30  0.26  0.16  0.27  0.26  0.25  0.22 -0.23 -0.24 -0.31
## N1         0.16 -0.08 -0.07 -0.09 -0.19 -0.06 -0.02 -0.08  0.21  0.21  0.01
## N2         0.13 -0.04 -0.08 -0.15 -0.19 -0.03  0.00 -0.06  0.15  0.24  0.01
## N3         0.09 -0.02 -0.03 -0.07 -0.13 -0.01  0.01 -0.07  0.20  0.23  0.05
## N4         0.04 -0.09 -0.13 -0.16 -0.21 -0.09 -0.04 -0.13  0.28  0.35  0.23
## N5         0.01  0.02 -0.04  0.00 -0.08 -0.05  0.05 -0.04  0.21  0.18  0.04
## O1         0.00  0.11  0.14  0.04  0.15  0.18  0.16  0.09 -0.10 -0.09 -0.10
## O2         0.07  0.03  0.03  0.05  0.00 -0.13 -0.05 -0.03  0.21  0.12  0.06
## O3        -0.06  0.15  0.22  0.04  0.22  0.19  0.18  0.06 -0.07 -0.07 -0.21
## O4        -0.09  0.05  0.02 -0.06  0.00  0.08  0.03  0.00  0.07  0.14  0.08
## O5         0.11 -0.08 -0.04  0.04 -0.04 -0.13 -0.06  0.00  0.18  0.05  0.09
## gender    -0.17  0.21  0.16  0.13  0.11  0.00  0.06  0.04 -0.07 -0.09 -0.15
## education -0.14  0.02  0.00 -0.02  0.02  0.04  0.01  0.06 -0.04  0.04  0.00
## age       -0.14  0.09  0.04  0.11  0.10  0.08  0.00  0.05 -0.12 -0.07 -0.03
##              E2    E3    E4    E5    N1    N2    N3    N4    N5    O1    O2
## A1         0.08 -0.04 -0.07 -0.02  0.16  0.13  0.09  0.04  0.01  0.00  0.07
## A2        -0.24  0.25  0.30  0.30 -0.08 -0.04 -0.02 -0.09  0.02  0.11  0.03
## A3        -0.29  0.38  0.39  0.26 -0.07 -0.08 -0.03 -0.13 -0.04  0.14  0.03
## A4        -0.20  0.20  0.33  0.16 -0.09 -0.15 -0.07 -0.16  0.00  0.04  0.05
## A5        -0.33  0.41  0.48  0.27 -0.19 -0.19 -0.13 -0.21 -0.08  0.15  0.00
## C1        -0.10  0.13  0.14  0.26 -0.06 -0.03 -0.01 -0.09 -0.05  0.18 -0.13
## C2        -0.07  0.15  0.12  0.25 -0.02  0.00  0.01 -0.04  0.05  0.16 -0.05
## C3        -0.09  0.10  0.10  0.22 -0.08 -0.06 -0.07 -0.13 -0.04  0.09 -0.03
## C4         0.21 -0.09 -0.12 -0.23  0.21  0.15  0.20  0.28  0.21 -0.10  0.21
## C5         0.26 -0.17 -0.21 -0.24  0.21  0.24  0.23  0.35  0.18 -0.09  0.12
## E1         0.47 -0.33 -0.42 -0.31  0.01  0.01  0.05  0.23  0.04 -0.10  0.06
## E2         1.00 -0.40 -0.52 -0.39  0.17  0.20  0.19  0.35  0.26 -0.16  0.08
## E3        -0.40  1.00  0.43  0.40 -0.04 -0.06 -0.01 -0.15 -0.09  0.33 -0.07
## E4        -0.52  0.43  1.00  0.33 -0.14 -0.15 -0.13 -0.31 -0.09  0.12  0.05
## E5        -0.39  0.40  0.33  1.00  0.04  0.05 -0.06 -0.21 -0.14  0.29 -0.09
## N1         0.17 -0.04 -0.14  0.04  1.00  0.71  0.57  0.41  0.38 -0.05  0.14
## N2         0.20 -0.06 -0.15  0.05  0.71  1.00  0.55  0.39  0.35 -0.05  0.12
## N3         0.19 -0.01 -0.13 -0.06  0.57  0.55  1.00  0.52  0.43 -0.05  0.11
## N4         0.35 -0.15 -0.31 -0.21  0.41  0.39  0.52  1.00  0.40 -0.06  0.08
## N5         0.26 -0.09 -0.09 -0.14  0.38  0.35  0.43  0.40  1.00 -0.15  0.20
## O1        -0.16  0.33  0.12  0.29 -0.05 -0.05 -0.05 -0.06 -0.15  1.00 -0.23
## O2         0.08 -0.07  0.05 -0.09  0.14  0.12  0.11  0.08  0.20 -0.23  1.00
## O3        -0.24  0.41  0.21  0.30 -0.03 -0.02 -0.03 -0.06 -0.08  0.39 -0.29
## O4         0.17  0.04 -0.10 -0.02  0.09  0.13  0.17  0.23  0.11  0.17 -0.08
## O5         0.08 -0.13  0.04 -0.11  0.10  0.02  0.05  0.03  0.14 -0.25  0.33
## gender    -0.08  0.05  0.11  0.08  0.04  0.09  0.11 -0.02  0.21 -0.11  0.04
## education -0.01  0.01 -0.03  0.06 -0.04 -0.04 -0.04  0.01 -0.05  0.03 -0.10
## age       -0.10 -0.02 -0.01  0.10 -0.07 -0.09 -0.11 -0.02 -0.10  0.05 -0.04
##              O3    O4    O5 gender education   age
## A1        -0.06 -0.09  0.11  -0.17     -0.14 -0.14
## A2         0.15  0.05 -0.08   0.21      0.02  0.09
## A3         0.22  0.02 -0.04   0.16      0.00  0.04
## A4         0.04 -0.06  0.04   0.13     -0.02  0.11
## A5         0.22  0.00 -0.04   0.11      0.02  0.10
## C1         0.19  0.08 -0.13   0.00      0.04  0.08
## C2         0.18  0.03 -0.06   0.06      0.01  0.00
## C3         0.06  0.00  0.00   0.04      0.06  0.05
## C4        -0.07  0.07  0.18  -0.07     -0.04 -0.12
## C5        -0.07  0.14  0.05  -0.09      0.04 -0.07
## E1        -0.21  0.08  0.09  -0.15      0.00 -0.03
## E2        -0.24  0.17  0.08  -0.08     -0.01 -0.10
## E3         0.41  0.04 -0.13   0.05      0.01 -0.02
## E4         0.21 -0.10  0.04   0.11     -0.03 -0.01
## E5         0.30 -0.02 -0.11   0.08      0.06  0.10
## N1        -0.03  0.09  0.10   0.04     -0.04 -0.07
## N2        -0.02  0.13  0.02   0.09     -0.04 -0.09
## N3        -0.03  0.17  0.05   0.11     -0.04 -0.11
## N4        -0.06  0.23  0.03  -0.02      0.01 -0.02
## N5        -0.08  0.11  0.14   0.21     -0.05 -0.10
## O1         0.39  0.17 -0.25  -0.11      0.03  0.05
## O2        -0.29 -0.08  0.33   0.04     -0.10 -0.04
## O3         1.00  0.17 -0.32  -0.04      0.10  0.02
## O4         0.17  1.00 -0.18  -0.04      0.06  0.00
## O5        -0.32 -0.18  1.00   0.04     -0.06 -0.08
## gender    -0.04 -0.04  0.04   1.00      0.01  0.05
## education  0.10  0.06 -0.06   0.01      1.00  0.25
## age        0.02  0.00 -0.08   0.05      0.25  1.00

31 / 54

Pairwise vs. Listwise Deletion

With pairwise deletion, different sets of cases contribute to different correlations. That maximizes the sample sizes, but can lead to problems if the data are missing for some systematic reason.

32 / 54

Pairwise vs. Listwise Deletion

With pairwise deletion, different sets of cases contribute to different correlations. That maximizes the sample sizes, but can lead to problems if the data are missing for some systematic reason.

Listwise deletion (often referred to in R as use complete cases) doesn't have the same issue of biasing correlations, but does result in smaller samples and potentially limited generalizability.

32 / 54

Pairwise vs. Listwise Deletion

With pairwise deletion, different sets of cases contribute to different correlations. That maximizes the sample sizes, but can lead to problems if the data are missing for some systematic reason.

A good practice is comparing the different matrices; if the correlation values are very different, this suggests that the missingness that affects pairwise deletion is systematic.

32 / 54

round(cor(bfi, use = "pairwise")- cor(bfi, use = "complete"),2)

##              A1    A2    A3    A4    A5    C1    C2    C3    C4    C5    E1
## A1         0.00  0.00  0.00  0.00  0.00  0.01  0.00 -0.01  0.03  0.03 -0.01
## A2         0.00  0.00  0.00 -0.01  0.01  0.00  0.01  0.01 -0.01 -0.01  0.03
## A3         0.00  0.00  0.00 -0.02  0.00  0.00  0.00  0.00  0.00 -0.01  0.00
## A4         0.00 -0.01 -0.02  0.00 -0.01  0.01  0.01  0.00  0.01  0.00  0.03
## A5         0.00  0.01  0.00 -0.01  0.00  0.00  0.00  0.00 -0.01 -0.01  0.00
## C1         0.01  0.00  0.00  0.01  0.00  0.00  0.00 -0.01  0.01  0.00  0.00
## C2         0.00  0.01  0.00  0.01  0.00  0.00  0.00  0.00  0.00  0.00 -0.01
## C3        -0.01  0.01  0.00  0.00  0.00 -0.01  0.00  0.00  0.02  0.01  0.02
## C4         0.03 -0.01  0.00  0.01 -0.01  0.01  0.00  0.02  0.00 -0.01 -0.01
## C5         0.03 -0.01 -0.01  0.00 -0.01  0.00  0.00  0.01 -0.01  0.00  0.00
## E1        -0.01  0.03  0.00  0.03  0.00  0.00 -0.01  0.02 -0.01  0.00  0.00
## E2         0.01  0.01  0.00  0.01  0.00  0.01  0.01  0.01 -0.01  0.00  0.00
## E3         0.00  0.00  0.00 -0.01  0.00 -0.02  0.00 -0.02  0.01  0.01  0.01
## E4         0.01 -0.02 -0.02 -0.03 -0.01  0.00  0.00 -0.01  0.01  0.01  0.00
## E5         0.00  0.00 -0.01  0.00  0.00 -0.01  0.00  0.00  0.00  0.01  0.00
## N1         0.01 -0.01 -0.02  0.00  0.00 -0.01  0.00  0.01  0.01  0.01  0.01
## N2         0.01 -0.01  0.00  0.00  0.00 -0.01 -0.01  0.00  0.01  0.01  0.01
## N3         0.01 -0.02 -0.01  0.00 -0.01 -0.02 -0.01  0.01  0.01  0.01  0.00
## N4         0.01  0.00  0.00 -0.01  0.01 -0.01 -0.01  0.02 -0.02 -0.01  0.00
## N5         0.01  0.00  0.00  0.00  0.00  0.00  0.00  0.02 -0.02 -0.01  0.01
## O1         0.01  0.02  0.00  0.02  0.02 -0.01  0.01  0.00  0.01  0.01  0.00
## O2         0.01 -0.02 -0.03 -0.01  0.00  0.02  0.01  0.00  0.00  0.02 -0.01
## O3         0.00  0.02  0.01  0.03  0.02  0.00  0.01  0.01 -0.01 -0.01  0.00
## O4         0.01  0.03  0.01  0.02  0.01  0.03  0.03  0.02 -0.02  0.00 -0.01
## O5         0.01 -0.01 -0.01 -0.01 -0.01  0.01  0.00 -0.01  0.01  0.01  0.01
## gender     0.01 -0.03 -0.02  0.00 -0.01  0.01  0.01  0.01 -0.01  0.00  0.02
## education  0.00 -0.01 -0.01  0.00  0.00 -0.01 -0.01 -0.01  0.00 -0.01  0.00
## age       -0.02  0.02  0.03  0.03  0.03  0.00  0.02  0.02 -0.03 -0.01  0.01
##              E2    E3    E4    E5    N1    N2    N3    N4    N5    O1    O2
## A1         0.01  0.00  0.01  0.00  0.01  0.01  0.01  0.01  0.01  0.01  0.01
## A2         0.01  0.00 -0.02  0.00 -0.01 -0.01 -0.02  0.00  0.00  0.02 -0.02
## A3         0.00  0.00 -0.02 -0.01 -0.02  0.00 -0.01  0.00  0.00  0.00 -0.03
## A4         0.01 -0.01 -0.03  0.00  0.00  0.00  0.00 -0.01  0.00  0.02 -0.01
## A5         0.00  0.00 -0.01  0.00  0.00  0.00 -0.01  0.01  0.00  0.02  0.00
## C1         0.01 -0.02  0.00 -0.01 -0.01 -0.01 -0.02 -0.01  0.00 -0.01  0.02
## C2         0.01  0.00  0.00  0.00  0.00 -0.01 -0.01 -0.01  0.00  0.01  0.01
## C3         0.01 -0.02 -0.01  0.00  0.01  0.00  0.01  0.02  0.02  0.00  0.00
## C4        -0.01  0.01  0.01  0.00  0.01  0.01  0.01 -0.02 -0.02  0.01  0.00
## C5         0.00  0.01  0.01  0.01  0.01  0.01  0.01 -0.01 -0.01  0.01  0.02
## E1         0.00  0.01  0.00  0.00  0.01  0.01  0.00  0.00  0.01  0.00 -0.01
## E2         0.00  0.02  0.01  0.02  0.00  0.00  0.01 -0.01  0.00  0.00  0.00
## E3         0.02  0.00 -0.01 -0.02 -0.01 -0.01 -0.01  0.01  0.01  0.00  0.01
## E4         0.01 -0.01  0.00 -0.02  0.01  0.01  0.03  0.02  0.00  0.01  0.01
## E5         0.02 -0.02 -0.02  0.00  0.00 -0.01  0.00  0.00  0.01  0.00  0.00
## N1         0.00 -0.01  0.01  0.00  0.00  0.00 -0.01 -0.01 -0.01  0.00 -0.01
## N2         0.00 -0.01  0.01 -0.01  0.00  0.00  0.00  0.00  0.00  0.00  0.00
## N3         0.01 -0.01  0.03  0.00 -0.01  0.00  0.00  0.00  0.00  0.01  0.00
## N4        -0.01  0.01  0.02  0.00 -0.01  0.00  0.00  0.00  0.00  0.01  0.00
## N5         0.00  0.01  0.00  0.01 -0.01  0.00  0.00  0.00  0.00  0.03  0.00
## O1         0.00  0.00  0.01  0.00  0.00  0.00  0.01  0.01  0.03  0.00  0.02
## O2         0.00  0.01  0.01  0.00 -0.01  0.00  0.00  0.00  0.00  0.02  0.00
## O3         0.02 -0.02  0.00  0.00 -0.02 -0.01  0.00  0.00  0.01  0.00  0.03
## O4         0.00  0.01  0.01  0.01 -0.01  0.00  0.01 -0.02  0.01  0.01  0.01
## O5         0.00  0.02  0.01  0.00  0.01  0.02  0.01  0.01 -0.01  0.01 -0.01
## gender     0.02 -0.01 -0.03 -0.01  0.01  0.00  0.01  0.02  0.00  0.01 -0.02
## education  0.00  0.00 -0.01  0.00  0.00 -0.01 -0.01  0.00 -0.01 -0.01  0.01
## age        0.00  0.02  0.00  0.02 -0.01 -0.01  0.00 -0.01  0.00  0.00  0.00
##              O3    O4    O5 gender education   age
## A1         0.00  0.01  0.01   0.01      0.00 -0.02
## A2         0.02  0.03 -0.01  -0.03     -0.01  0.02
## A3         0.01  0.01 -0.01  -0.02     -0.01  0.03
## A4         0.03  0.02 -0.01   0.00      0.00  0.03
## A5         0.02  0.01 -0.01  -0.01      0.00  0.03
## C1         0.00  0.03  0.01   0.01     -0.01  0.00
## C2         0.01  0.03  0.00   0.01     -0.01  0.02
## C3         0.01  0.02 -0.01   0.01     -0.01  0.02
## C4        -0.01 -0.02  0.01  -0.01      0.00 -0.03
## C5        -0.01  0.00  0.01   0.00     -0.01 -0.01
## E1         0.00 -0.01  0.01   0.02      0.00  0.01
## E2         0.02  0.00  0.00   0.02      0.00  0.00
## E3        -0.02  0.01  0.02  -0.01      0.00  0.02
## E4         0.00  0.01  0.01  -0.03     -0.01  0.00
## E5         0.00  0.01  0.00  -0.01      0.00  0.02
## N1        -0.02 -0.01  0.01   0.01      0.00 -0.01
## N2        -0.01  0.00  0.02   0.00     -0.01 -0.01
## N3         0.00  0.01  0.01   0.01     -0.01  0.00
## N4         0.00 -0.02  0.01   0.02      0.00 -0.01
## N5         0.01  0.01 -0.01   0.00     -0.01  0.00
## O1         0.00  0.01  0.01   0.01     -0.01  0.00
## O2         0.03  0.01 -0.01  -0.02      0.01  0.00
## O3         0.00  0.02  0.01   0.01      0.00  0.01
## O4         0.02  0.00  0.00   0.03     -0.01  0.01
## O5         0.01  0.00  0.00  -0.01      0.00 -0.02
## gender     0.01  0.03 -0.01   0.00      0.00  0.00
## education  0.00 -0.01  0.00   0.00      0.00 -0.01
## age        0.01  0.01 -0.02   0.00     -0.01  0.00

33 / 54

Visualizing correlations

For a single correlation, best practice is to visualize the relationship using a scatterplot. A best fit line is advised, as it can help clarify the strength and direction of the relationship.

http://guessthecorrelation.com/

Interpreting Correlations

34 / 54

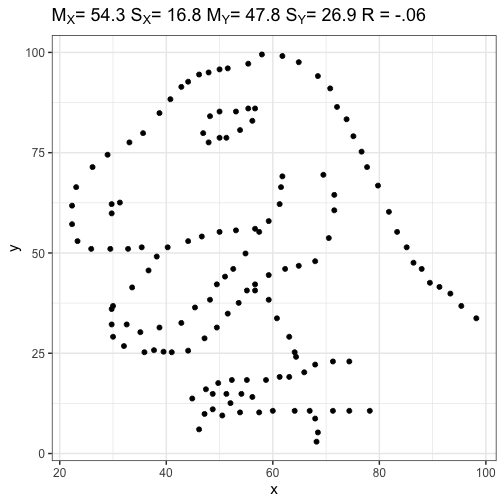

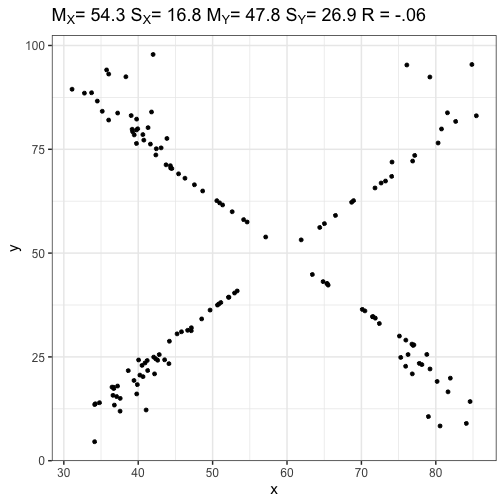

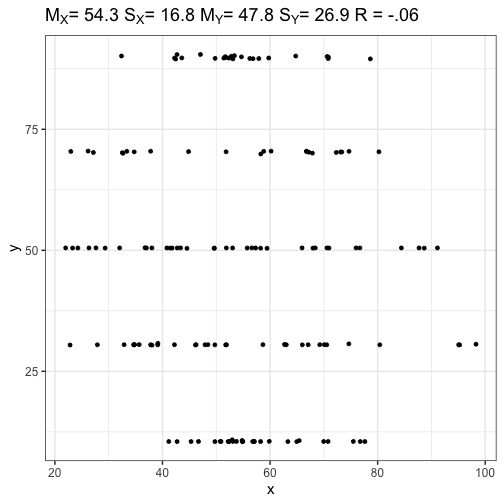

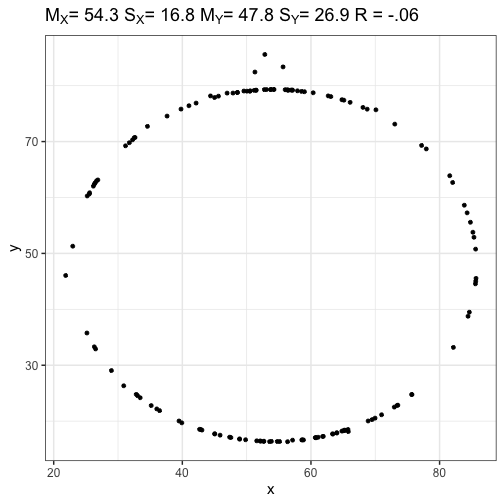

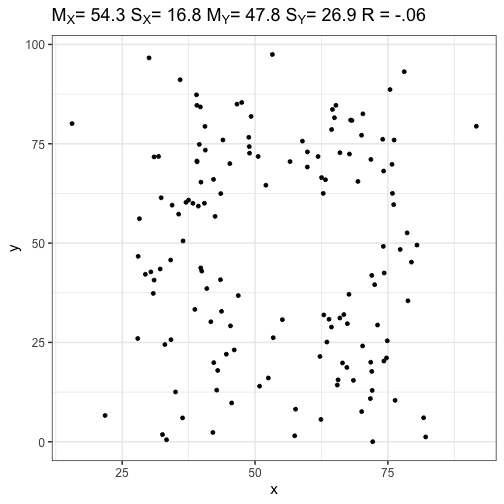

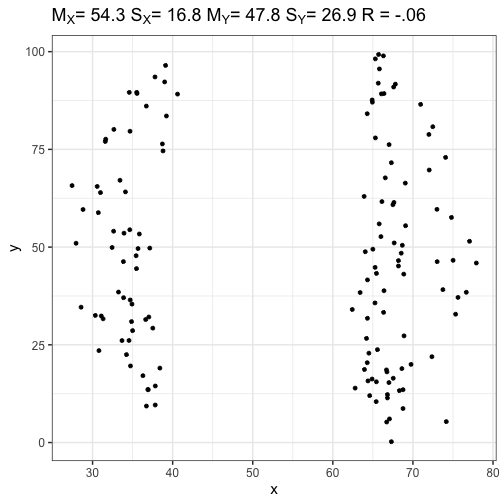

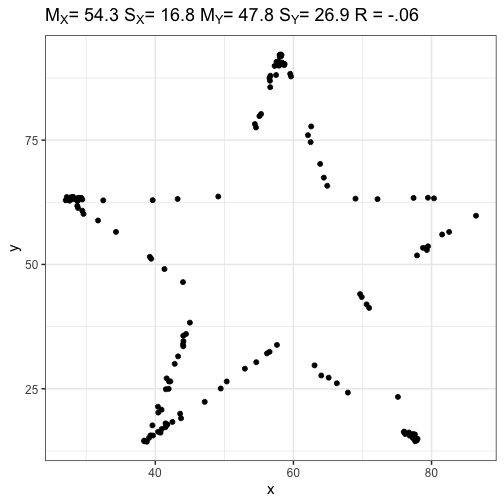

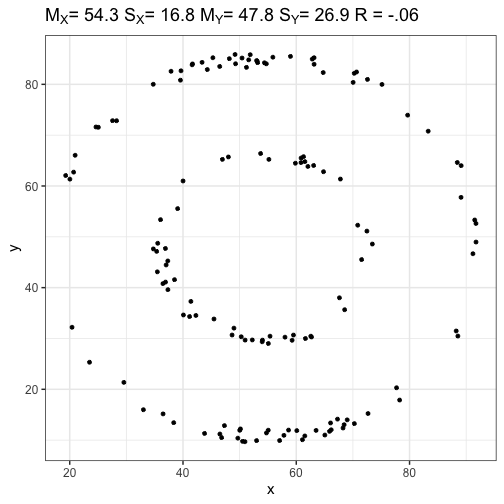

Correlations Can Lie

35 / 54

Correlations Can Lie

36 / 54

Correlations Can Lie

37 / 54

Correlations Can Lie

38 / 54

Correlations Can Lie

39 / 54

Correlations Can Lie

40 / 54

Correlations Can Lie

41 / 54

Correlations Can Lie

42 / 54

Visualizing correlation matrices

A single correlation can be informative; a correlation matrix is more than the sum of its parts.

Correlation matrices can be used to infer larger patterns of relationships. You may be one of the gifted who can look at a matrix of numbers and see those patterns immediately. Or you can use heat maps to visualize correlation matrices.

library(corrplot)

43 / 54

corrplot(cor(bfi, use = "pairwise"), method = "square")

44 / 54

Beck, Condon, & Jackson, 2019

45 / 54

What can we do with correlations?

Descriptive statistic; describing the strength of association/relationship
Inferential statistic + hypothesis testing:
- Is a correlation significantly different from 0?
- Is a correlation significantly different from a different number? **
- Construct a confidence interval around our correlation **
- Are two correlations significantly different from one another? **
- Used as effect size measure in power calculations

46 / 54

What can we do with correlations?

Descriptive statistic; describing the strength of association/relationship
Inferential statistic + hypothesis testing:
- Is a correlation significantly different from 0?
- Is a correlation significantly different from a different number? **
- Construct a confidence interval around our correlation **
- Are two correlations significantly different from one another? **
- Used as effect size measure in power calculations

** Need to use a Fisher r to z' transformation

46 / 54

Fisher's r to z' transformation

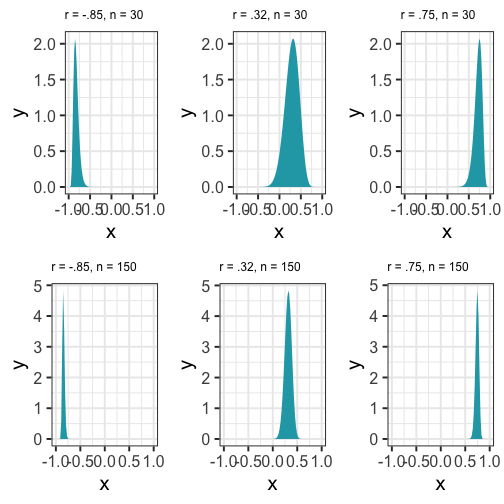

If we want to make calculations based on $ρ \neq 0$ then we will run into a skewed sampling distribution.

47 / 54

Fisher's r to z' transformation

Skewed sampling distribution will rear its head when:
- $H_{0} : ρ \neq 0$
- Calculating confidence intervals
- Testing two correlations against one another
r to z':

$z^{^{'}} = \frac{1}{2} l n \frac{1 + r}{1 - r}$

48 / 54

ln = natural log

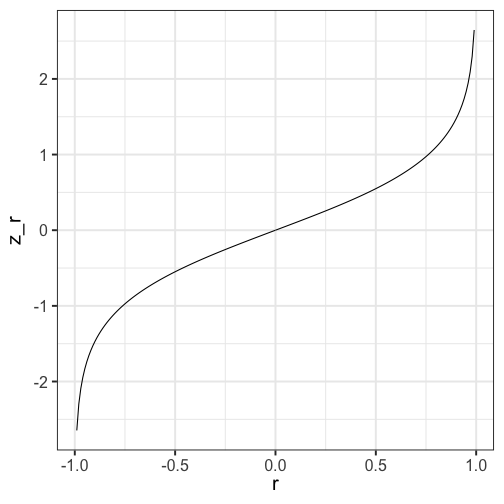

Fisher’s r to z’ transformation

No longer bounded by 1 & -1

49 / 54

How to do in R

library(psych)
fisherz(r)
fisherz2r(z)

Use when...

Is correlation different from a number other than 0?
Are 2 correlations different from one another?
Making a confidence interval around a correlation

50 / 54

Statistical Significance≠≠Practical Significance51 / 54

What is the size of the correlation?Chemotherapy and breast cancer survival? (.03)
Batting ability and hit success on a single at bat? (.06)
Antihistamine use and reduced sneezing/runny nose? (.11)
Combat exposure and PTSD? (.11)
Ibuprofen on pain reduction? (.14)
Gender and weight? (.26)
Therapy and well being? (.32)
Observer ratings of attractiveness? (.39)
Gender and arm strength? (.55)
Nearness to equator and daily temperature for U.S.? (.60)
52 / 54

Special cases of the Pearson correlation

Spearman correlation coefficient
- Applies when both X and Y are ranks (ordinal data) instead of continuous
- Denoted $ρ$ by your textbook, although I prefer to save Greek letters for population parameters.
Point-biserial correlation coefficient
- Applies when Y is binary.
  - NOTE: This is not an appropriate statistic when you artificially dichotomize data.
Phi ( $ϕ$ ) coefficient
- Both X and Y are dichotomous.

53 / 54

Next time...

Regression!

54 / 54

Recap

Population Variability

Sample variability

2 / 54

Help

Keyboard shortcuts

↑, ←, Pg Up, k

Go to previous slide

↓, →, Pg Dn, Space, j

Go to next slide

Home

Go to first slide

End

Go to last slide

Number + Return

Go to specific slide

b / m / f

Toggle blackout / mirrored / fullscreen mode

Clone slideshow

Toggle presenter mode

Restart the presentation timer

?, h

Toggle this help
